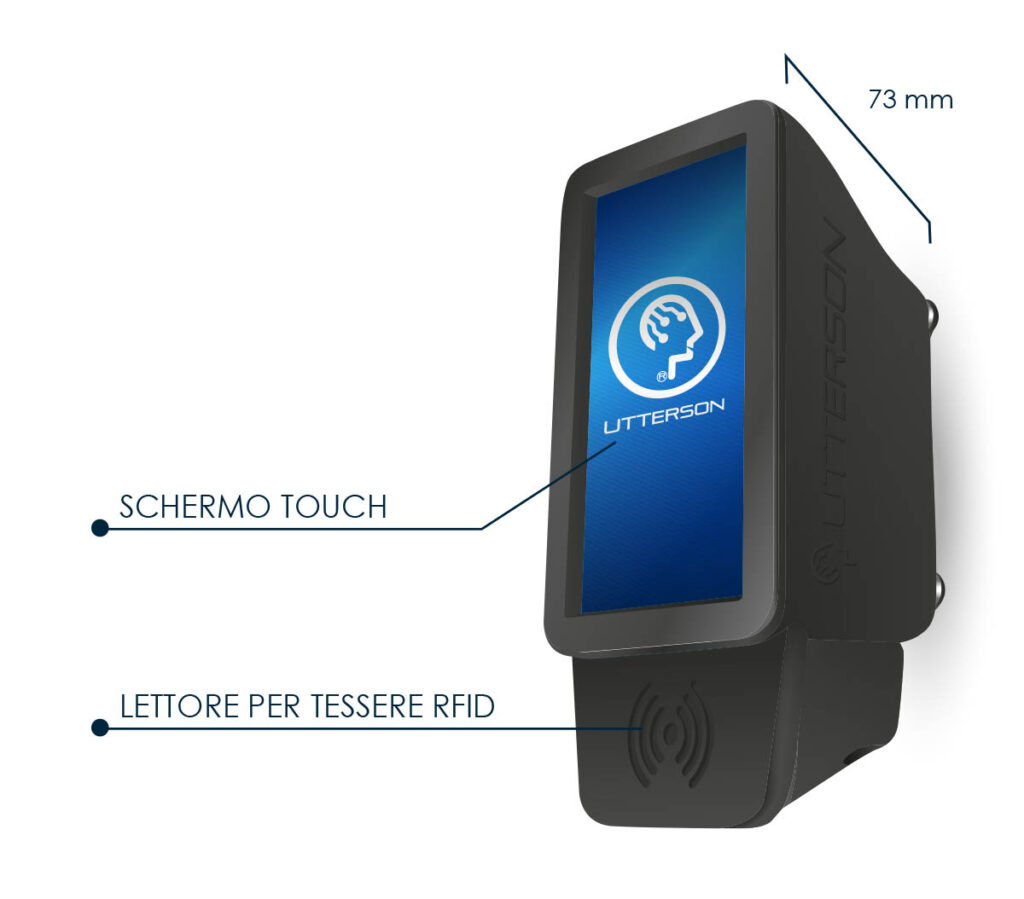

The uGate product is a multifunction touch terminal designed for the provision of a wide variety of services: from information points to clocking and/or staff recognition systems.

The ultra-compact design favors the application of the device in multiple scenarios thanks to the VESA support anchoring system.


It is equipped with WiFi, LTE, Bluethooth connectivity and is designed for the acquisition of NFC tags via an integrated RFID reader. The high-resolution 7-inch touch display allows you to reach resolutions up to 1920×1080. It also offers support for HARDWARE graphics acceleration thanks to Intel Geminilike (Gen9) VAAPI support

Based on x86 architecture, it allows the execution of operating systems such as Microsoft® Windows 10/11 and the latest Linux distributions available today.

It has 2 expansion slots in M2 format (1 x M2-SATA, 1 x M2-PCIe 4 lane), integrated 64GB eMMC and 8 GB RAM. Equipped with an HDMI output and 2 Gigabit Ethernet ports

It has PIN-Headers integrated with fully programmable analog and digital GPIO lines for the installation and control of custom hardware.

Technical features

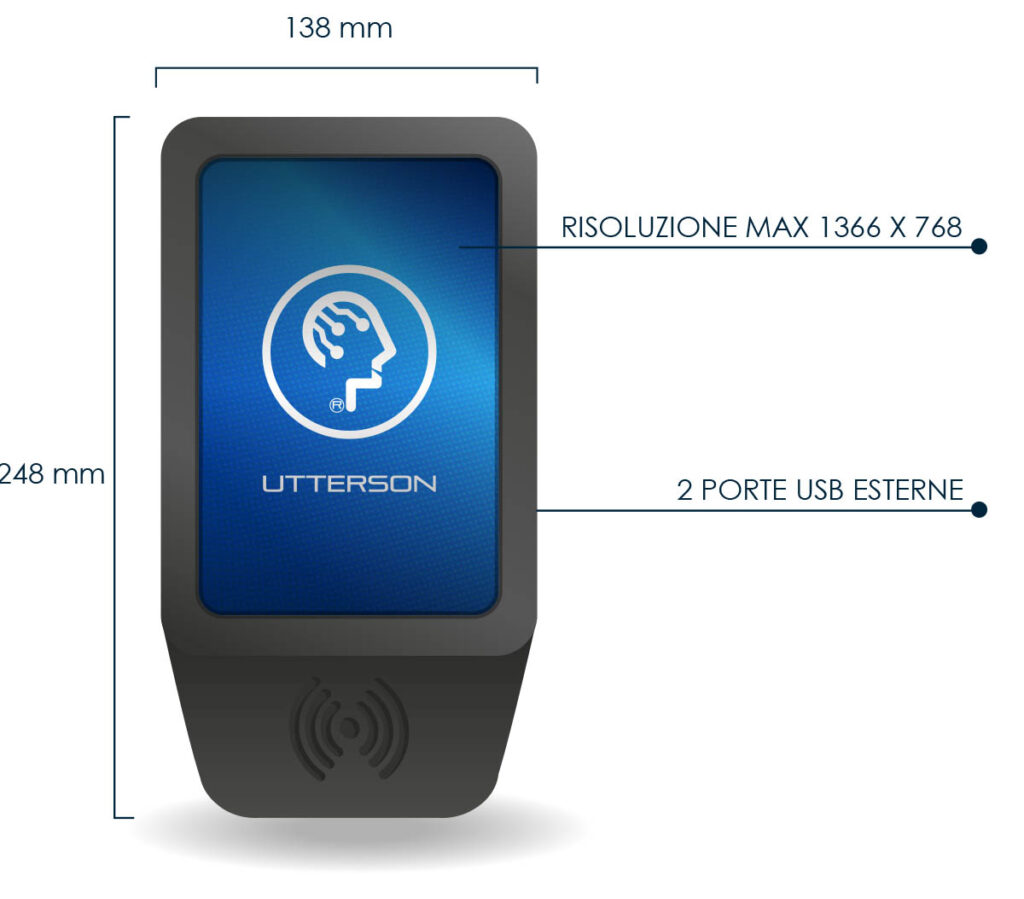

Device size L 138 mm – H 248 mm – Z 73 mm
Weight < 1.5 kg
Material Stereolithographic rigid plastic resin
Finish Matte
Motherboard ODYSSEY – X86J4125
Processor Intel® Celeron® J4125 1.5 – 2GHz
Number of cores 4
Architecture x86 – 64bit
Cooling Integrated heatsink with fan
Storage 64GB eMMC V5.1
Graphics card Intel UHD Graphics 600
Display Waveshare (maximum resolution 1366 x 768)
Touch Yes (integrated into the display)
Display port 1 x HDMI
Network ports 2 x Gigabit Ethernet
External USB ports 2 x USB 2.0 type type A
Internal USB ports 2 x USB 3.1 (1 type c, 1 type A)
Power 220 VAC – 50Hz, ~40 Watt
On/off button Yes (external on the back of the device)
Auto-power on on power Yes
Power port 1 x DC jack 5.5/2.1mm
RFID-ATE 13.5MHz card reader integrated
Operating system Microsoft Windows 10 Pro OEM licensed

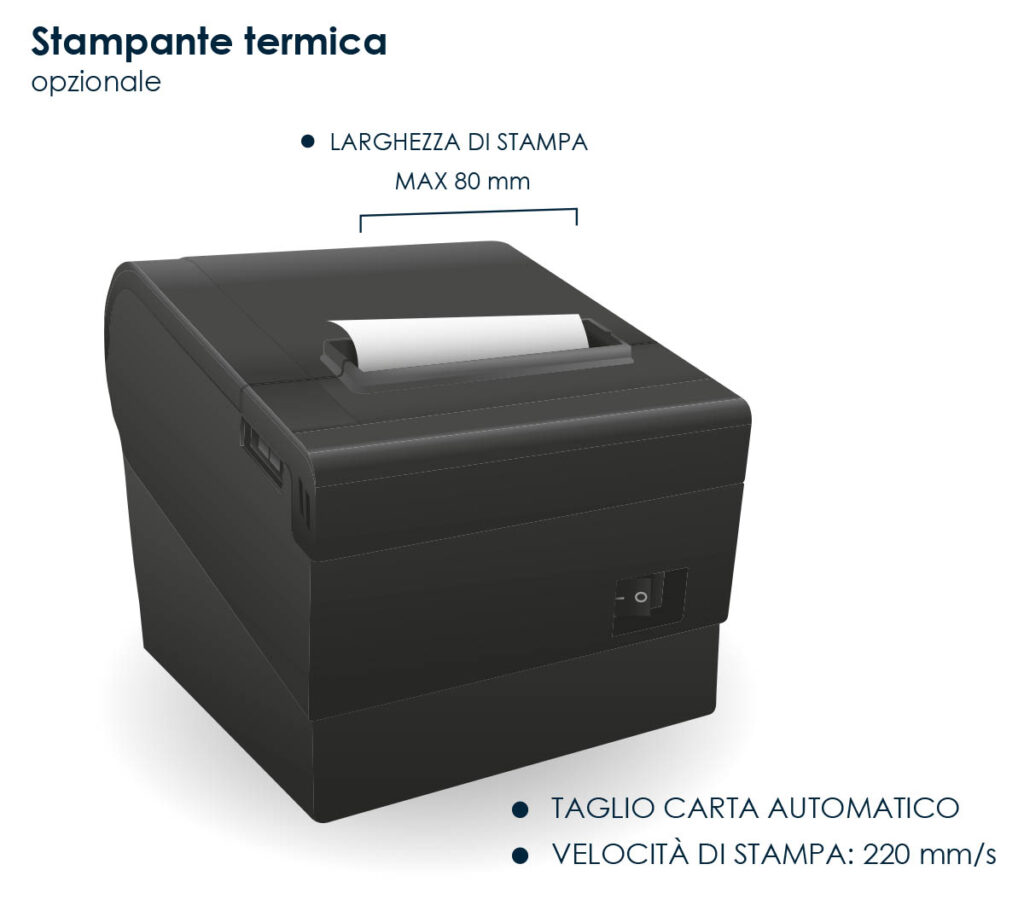

Printer Thermal
Command standards EPSON (ESC/EPC)
Print density 576 points/line
Printing speed 220 mm/s
Print width Max 80mm
Paper cutting Automatic
LAN interface YES
USB interface YES

Mechanical features
